Model InSystem 003
v-heavy
up to 20
objects
per second
objects / sec
up to 36
tons
per hour

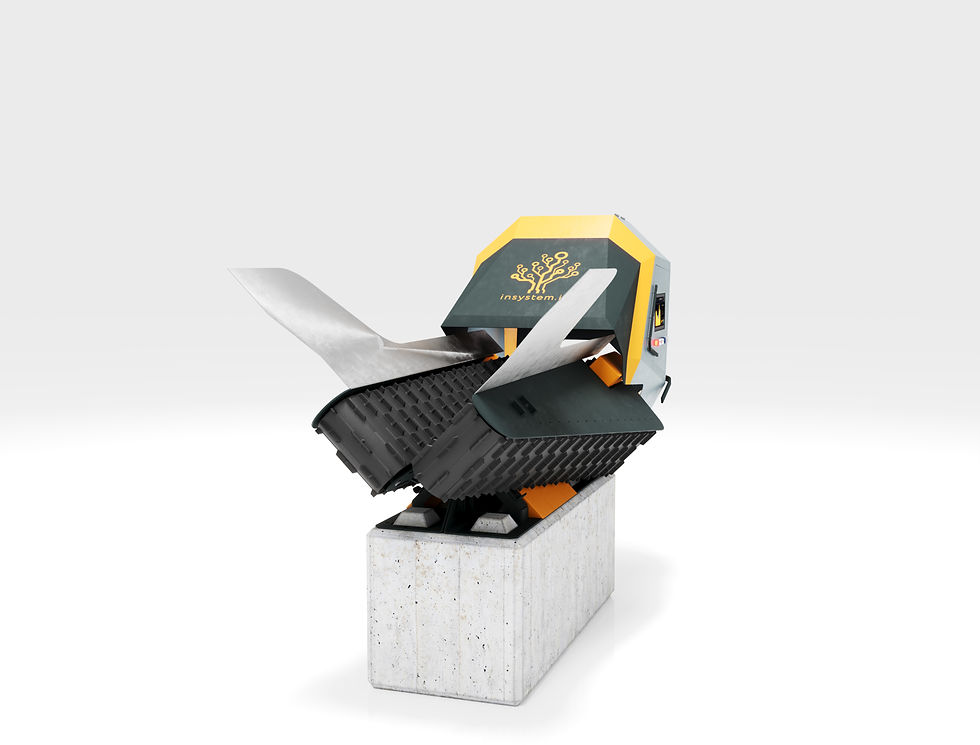

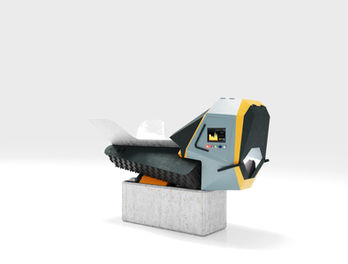

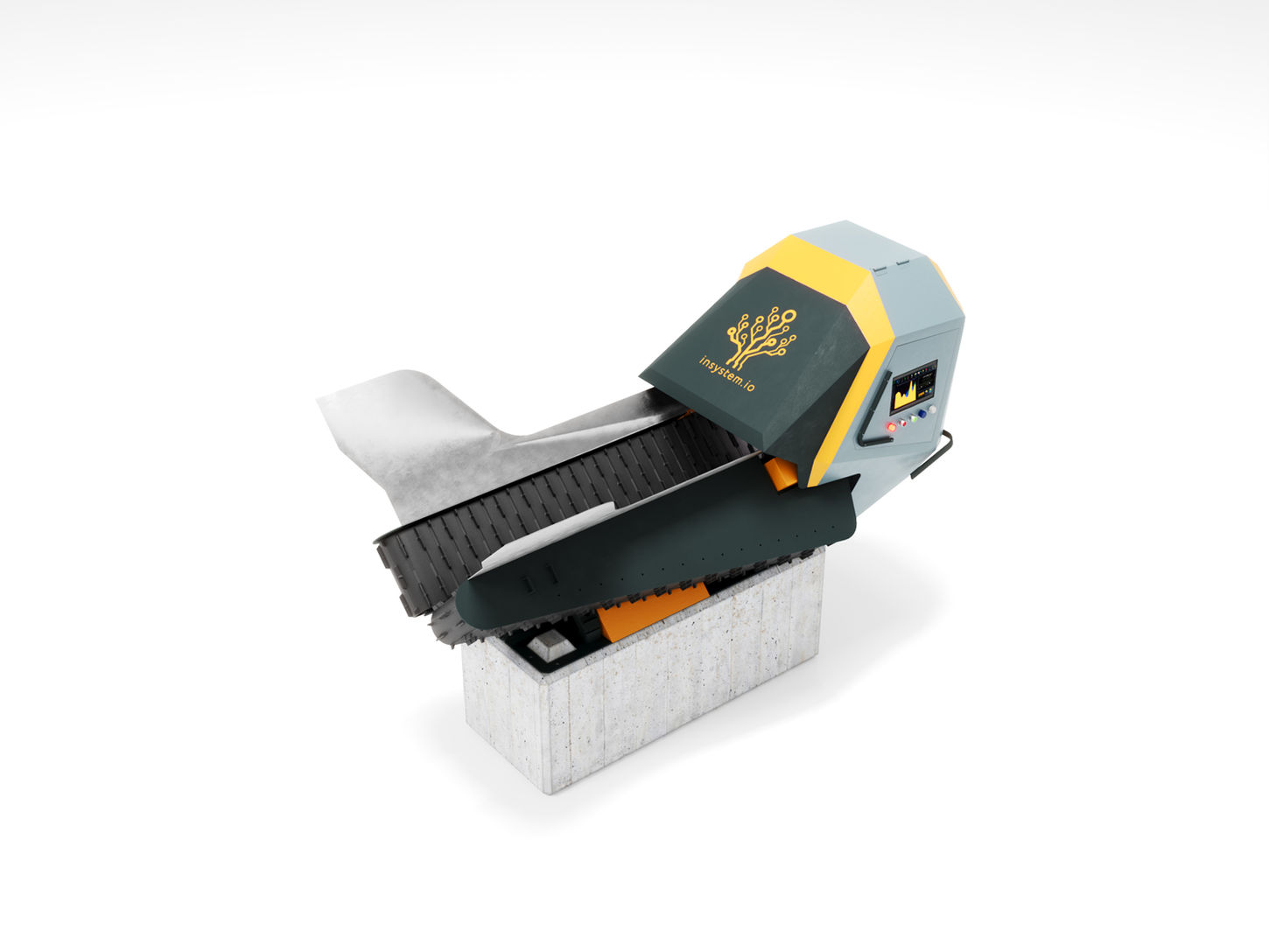

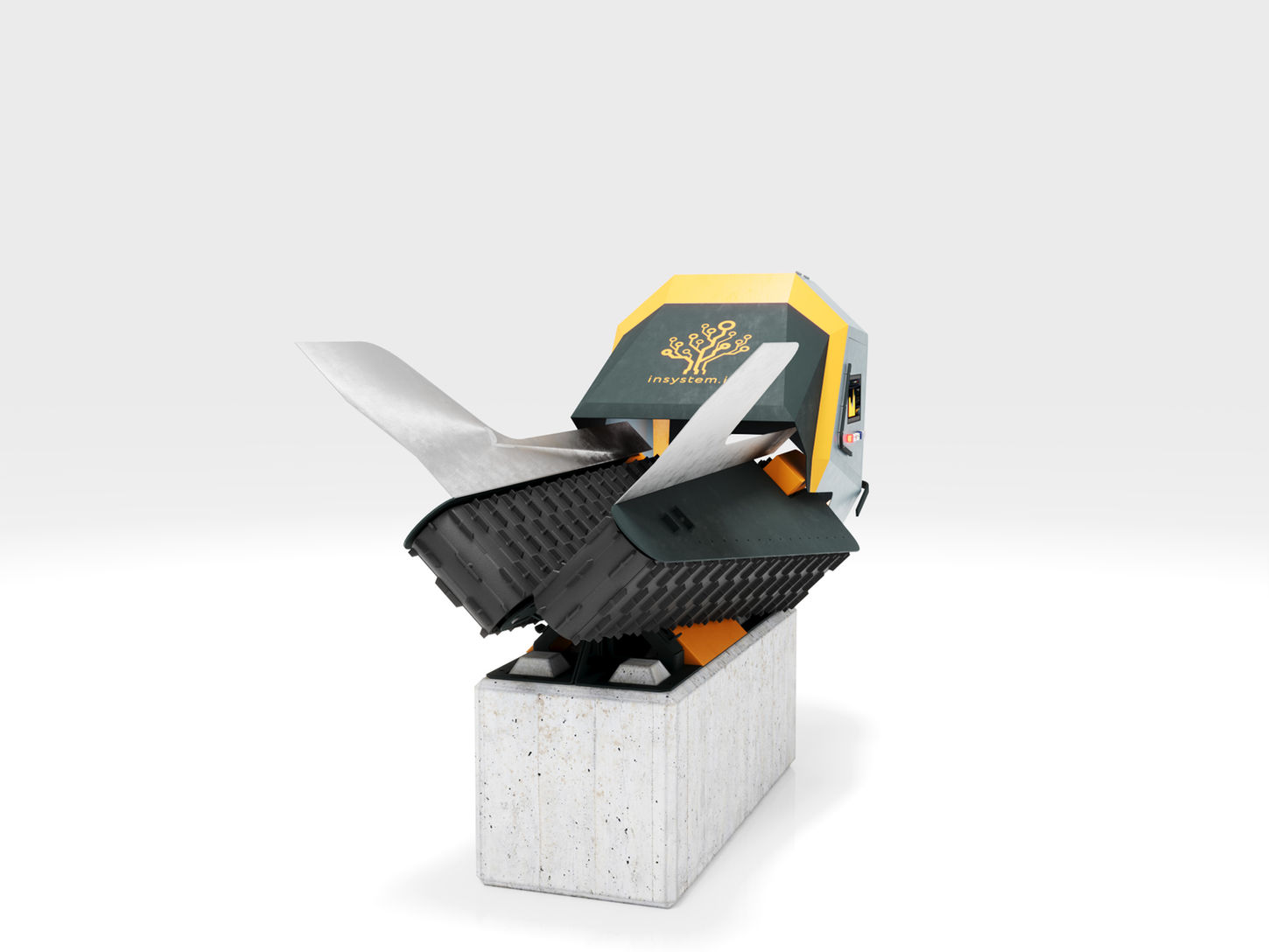

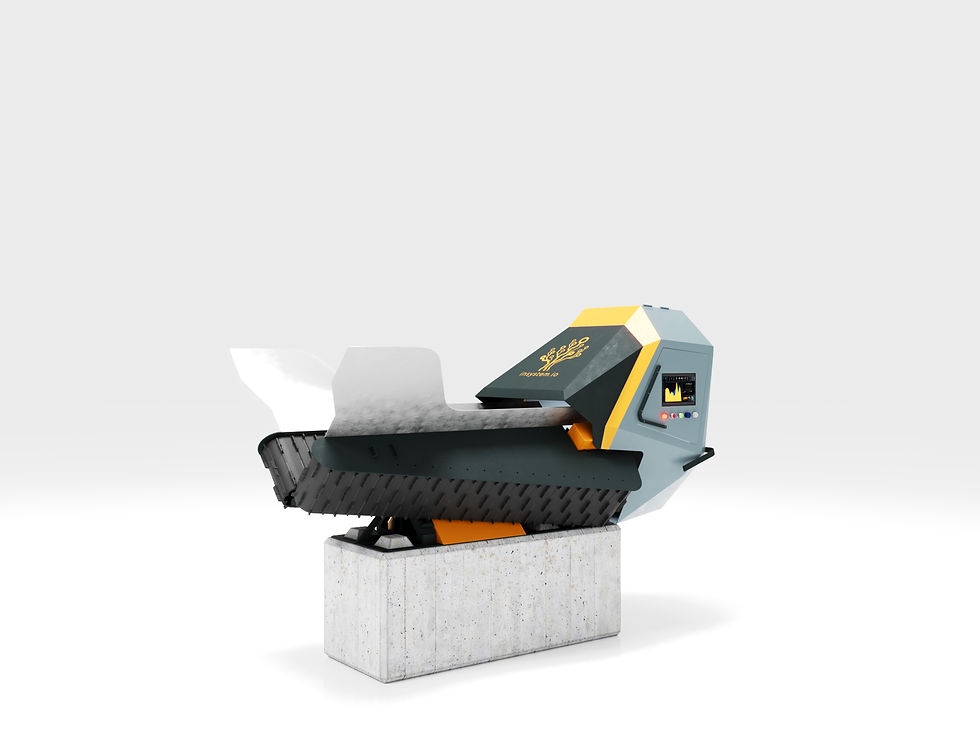

The optical separator is V-HEAVY a high-tech system designed for automatic sorting and separation of various materials using advanced optical and machine vision technologies. It accurately identifies objects by color, size, shape, and chemical composition, making it indispensable in recycling, waste management, and industrial production. Equipped with a high-speed camera and dual-mirror system, the separator captures a 360-degree view of each object, detecting even the smallest details at high speed. The system enables parallel sorting into up to six different fractions from a single mixed material stream, delivering maximum efficiency and precision in demanding environments.
PURITY LEVELS
Ai + NiR camera
input size up to 250 mm
125 000 €
Model InSystem 003
v-heavy
up to 20
object
per second
up to 36
tons
per hour
The optical separator V-HEAVY is a high-tech system designed for automatic sorting and separation of various materials using advanced optical and machine vision technologies. It accurately identifies objects by color, size, shape, and chemical composition, making it indispensable in recycling, waste management, and industrial production. Equipped with a high-speed camera and dual-mirror system, the separator captures a 360-degree view of each object, detecting even the smallest details at high speed. The system enables parallel sorting into up to six different fractions from a single mixed material stream, delivering maximum efficiency and precision in demanding environments.
PURITY LEVELS
ai + nir
camera
input size up
to 250 мм
125 000 €
up to 20
objects
per second
up to 36
tons
per hour
The optical separator V-HEAVY is a high-tech system designed for automatic sorting and separation of various materials using advanced optical and machine vision technologies. It accurately identifies objects by color, size, shape, and chemical composition, making it indispensable in recycling, waste management, and industrial production. Equipped with a high-speed camera and dual-mirror system, the separator captures a 360-degree view of each object, detecting even the smallest details at high speed. The system enables parallel sorting into up to six different fractions from a single mixed material stream, delivering maximum efficiency and precision in demanding environments.
PURITY LEVELS
Ai + NiR camera
input size up to 250 мм
125 000 €
Model InSystem 003
V-HEAVY
Detaled review
Our team will be happy to help you with your specific questions and requests.
Irina Tserush
Manager
Contact us >
Sorted materials
%20(1).png)
The V-Heavy machine is engineered for use in a wide range of industries, from construction and agriculture to recycling and waste management. Its robust design allows it to handle diverse materials and process mixed waste streams with high efficiency.
Whether sorting stones, wood, or agricultural products like potatoes, the V-Heavy delivers reliable performance and adaptability across various applications.
STONE
WOOD
POTATOES

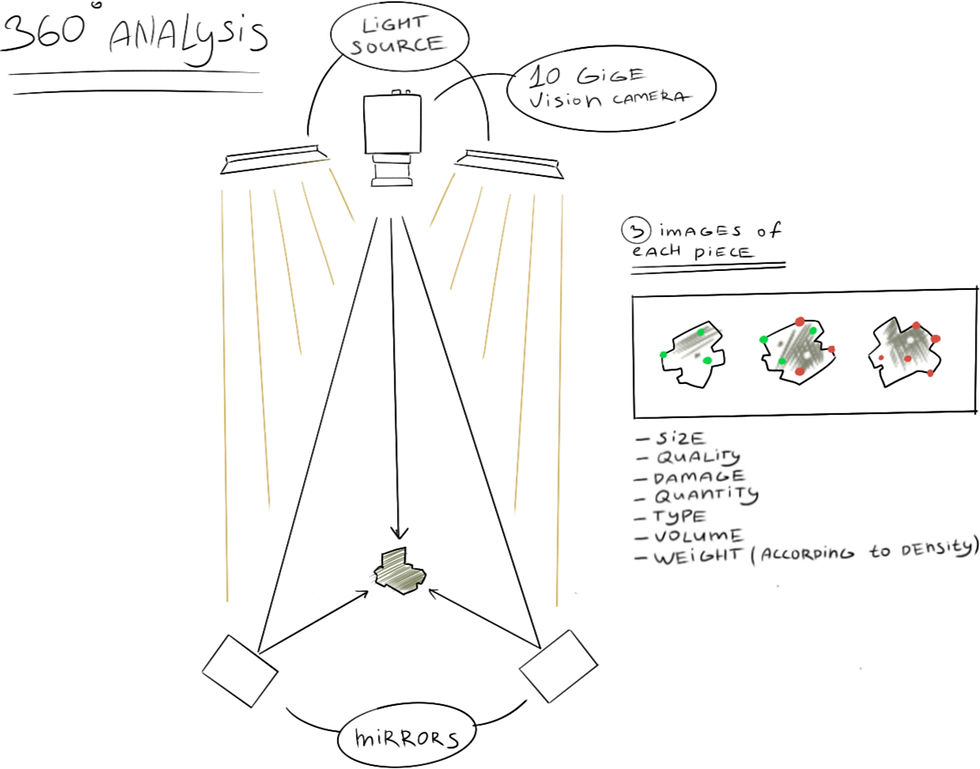

360° camera
The high-speed camera with dual mirror system provides a 360-degree comprehensive view of the object, allowing the smallest details to be captured at high speed. Thanks to its unique optical design, the camera can capture images from all sides simultaneously, making it indispensable in industrial applications where precise quality control and analysis of fast-moving processes is required. The high resolution and speed of capture ensure that even the most complex objects are examined in detail, providing reliable data for optimising production.
360° camera
The high-speed camera with dual mirror system provides a 360-degree comprehensive view of the object, allowing the smallest details to be captured at high speed. Thanks to its unique optical design, the camera can capture images from all sides simultaneously, making it indispensable in industrial applications where precise quality control and analysis of fast-moving processes is required. The high resolution and speed of capture ensure that even the most complex objects are examined in detail, providing reliable data for optimising production.
360° camera
The high-speed camera with dual mirror system provides a 360-degree comprehensive view of the object, allowing the smallest details to be captured at high speed. Thanks to its unique optical design, the camera can capture images from all sides simultaneously, making it indispensable in industrial applications where precise quality control and analysis of fast-moving processes is required. The high resolution and speed of capture ensure that even the most complex objects are examined in detail, providing reliable data for optimising production.

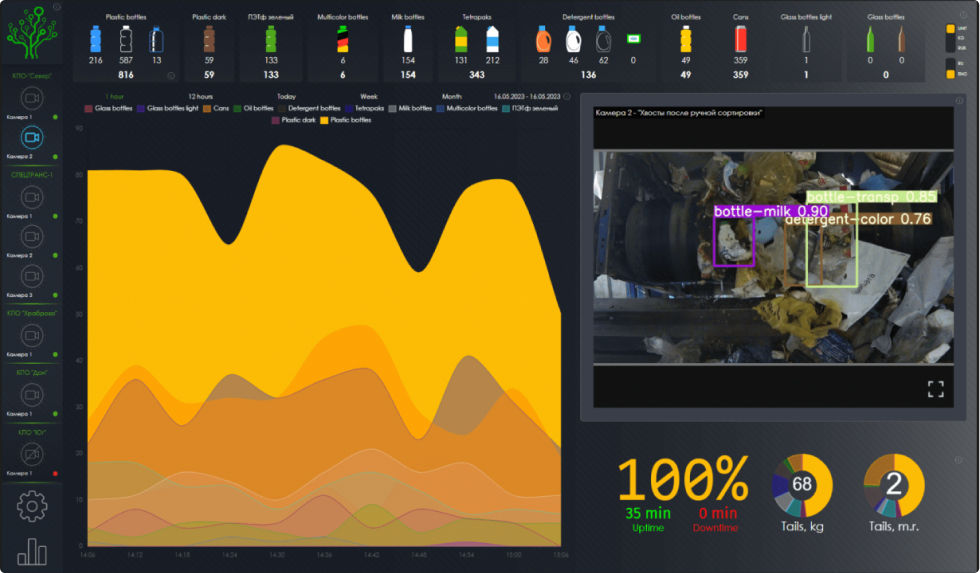

Statistics
.jpg)
The high-speed camera and Ai provides up to 100 frames per secondobject analisys. The high resolution and speed of capture ensure that even the most complex objects are examined in detail, providing reliable data for optimising production.
REALTIME
STATISTICS
REMOTE CONNECTION
HIGH-SPEED
AI UPDATE
CLOUD MONITORING
Statistics
The high-speed camera and Ai provides up to 100 frames per secondobject analisys.
The high resolution and speed of capture ensure that even the most complex objects
are examined in detail, providing reliable data for optimising production.
REALTIME
STATISTICS
REMOTE CONNECTION
HIGH-SPEED
AI UPDATE
CLOUD MONITORING
Statistics
The high-speed camera and Ai provides up to 100 frames per secondobject analisys. The high resolution and speed of capture ensure that even the most complex objects are examined in detail, providing reliable data for optimising production.
REALTIME
STATISTICS
REMOTE CONNECTION
HIGH-SPEED
AI UPDATE
CLOUD MONITORING
Sorted materials
The V-Heavy machine is engineered for use in a wide range of industries, from construction and agriculture to recycling and waste management. Its robust design allows it to handle diverse materials and process mixed waste streams with high efficiency.
Whether sorting stones, wood, or agricultural products like potatoes, the V-Heavy delivers reliable performance and adaptability across various applications.
STONE
WOOD
POTATOES
%20(1).png)
Sorted materials
The V-Heavy machine is engineered for use in a wide range of industries, from construction and agriculture to recycling and waste management. Its robust design allows it to handle diverse materials and process mixed waste streams with high efficiency.
Whether sorting stones, wood, or agricultural products like potatoes, the V-Heavy delivers reliable performance and adaptability across various applications.

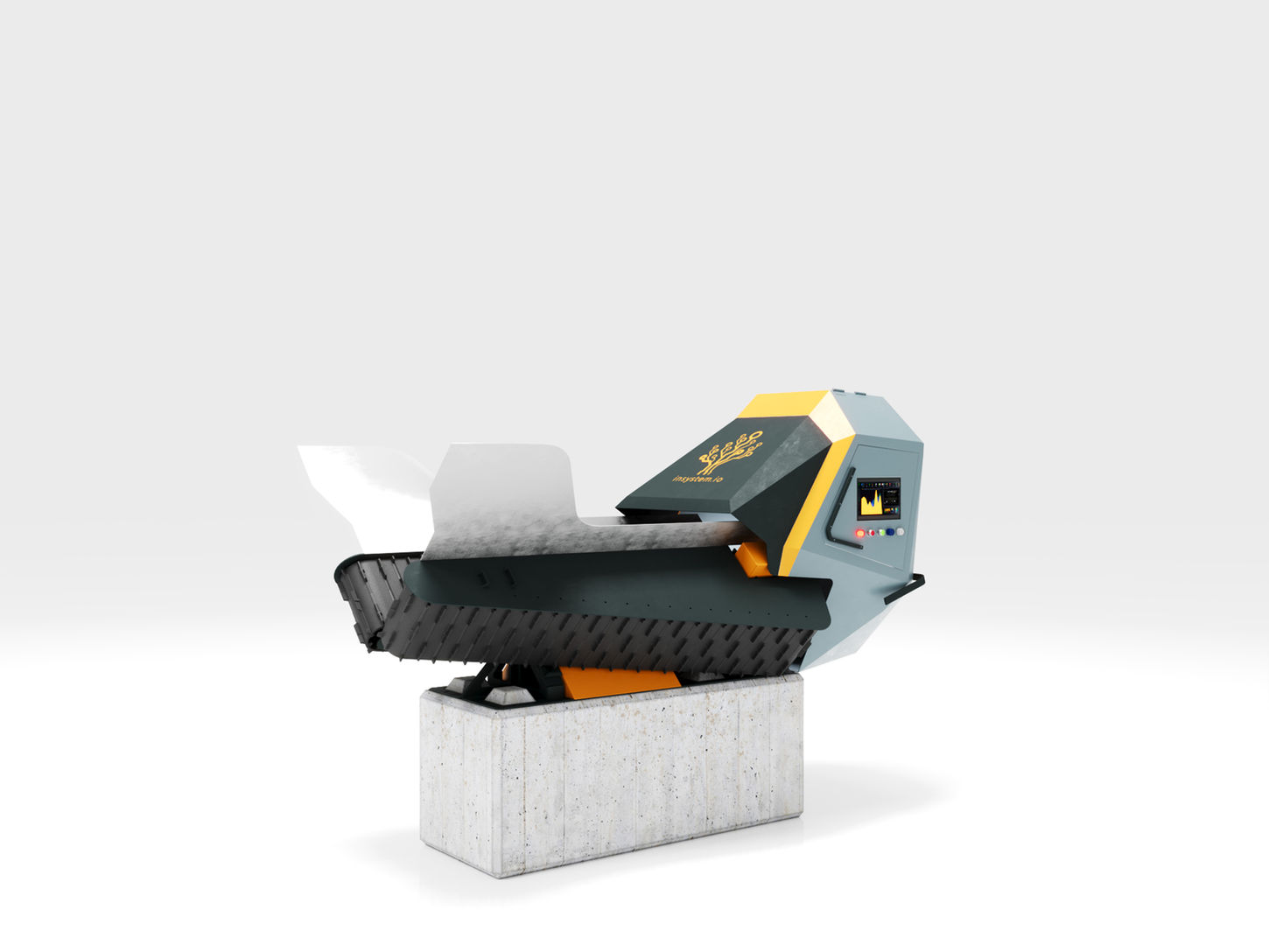

Design and construction
This modular design allows for easy integration into existing production lines and can be configured in a series, with each unit sorting specific fractions and passing remaining materials to the next separator. The robust frame and adaptable support structure ensure stability and flexibility in various industrial settings.
constituent
material
Frame
Steel
Support structure
Steel, stone
Conveyor belt
High-strength
rubber
Design and construction
The V-belt high speed conveyor is designed to maximise efficiency in production processes. The unique design allows the conveyors to be installed in a chain, where each sifts its own fraction and passes the remaining material to the next. The interchangeable footplate, adaptable for mounting on a lego block or on a frame, provides flexibility of installation and easy integration into different production lines. This modular system guarantees precise sorting and optimised space utilisation, increasing overall productivity.
CONSTITUENT
MATERIAL
Frame
Steel
Support structure
Steel, stone
Conveyor belt
High-strength rubber
Design and construction
The V-belt high speed conveyor is designed to maximise efficiency in production processes. The unique design allows the conveyors to be installed in a chain, where each sifts its own fraction and passes the remaining material to the next. The interchangeable footplate, adaptable for mounting on a lego block or on a frame, provides flexibility of installation and easy integration into different production lines. This modular system guarantees precise sorting and optimised space utilisation, increasing overall productivity.
constituent
material
Frame
Steel
Support structure
Steel, stone
Conveyor belt
High-strength rubber
Technical details
and specifications
The Optical Sorter - Line features an advanced self-calibration system for optimal performance under varying conditions. Its proprietary software enables remote monitoring and real-time adjustments, while the modular design allows for easy customization to meet specific industry requirements without complete system replacement.
BASIC PARAMETRES
Capacity
12 000kg/h
Power consumption 5 kVt
FRACTIONS
Up to 6
separate fractions
Input fraction size <150 mm
CONVEYOR
High-frequency technology
Conveyor speed
3-4 m/s
AUTOMATIC OIL SYSTEM
Highly precise
360 analysis
Technical details
and specifications
The Optical Sorter - Line features an advanced self-calibration system for optimal performance under varying conditions. Its proprietary software enables remote monitoring and real-time adjustments, while the modular design allows for easy customization to meet specific industry requirements without complete system replacement.
BASIC PARAMETRES
Capacity
12 000 kg/h
Power consumption
5 kW
FRACTIONS
Up to 6
separate fractions
Input fraction size <150 mm
CONVEYOR
High-frequency technology
Conveyor speed
3-4 m/s
CAMERA
Highly precise
360 analysis
Parameters
Significance
Overall dimensions
4900х2150х1400 mm
Minimum and maximum size
of sorted objects
0-150 mm
Power consumption
5 kW/h
Operating temperature range
from -20 to +40 °C
Weight
1150 kg
Technical details
and specifications
The high-speed conveyor with V-belt is made of wear-resistant materials resistant to mechanical damage and chemical influences. It is equipped with a powerful variable speed drive system and a state-of-the-art control system with touchscreen interface, allowing it to be precisely customised for different applications. The modular design ensures easy transport, installation and maintenance, as well as the ability to quickly expand production capacity.
BASIC PARAMETRES
Capacity 12 000 kg/hour
Power consumption 5 kVt
FRACTIONS
Up to 6 separate fractions
Input fraction size <150 mm
CONVEYOR
High-frequency technology
Conveyor speed 3-4 m/s
Camera
Highly precise 360 analysis
Parameters
Significance
Overall dimensions
4900х2150х1400 mm
Minimum and maximum size of sorted objects
0-150 mm
Power consumption
5 kVt per hour
Operating temperature range
from -20 to +40 °C
Weight
1150 kg
Parameters
Significance
Overall dimensions
4900х2150х
1400 mm
Minimum and maximum size
of sorted objects
0-150 mm
Power consumption
5 kVt per hour
Operating temperature range
from -20
to +40 °C
Weight
1150 kg
Compressed
air requirements
8 bar,
2000 L/min
Place in sorting line
Place in sorting line
Place in sorting line
